Chemical Reactor Manufacturer — Glass & Stainless Steel, 1L to 200L
✓ ISO 9001 Certified Factory · ✓ GG3.3 Borosilicate & SS316L · ✓ 7–15 Day Factory Delivery · ✓ CE Certified · 1-Year Warranty · ✓ OEM / ODM · Export to 40+ Countries
1L–200L Full Range | Glass & Stainless Steel | Matching TCU & Chillers | Custom Configurations
Get a Reactor Quote — Reply Within 24h
🔒 Used only to reply to your inquiry — no spam, never shared.
Reactor systems delivered to labs, pilot plants and universities worldwide
Reactor Range — Lab to Pilot Scale
Jacketed Glass Reactors
Single & Triple Layer Glass Reactors
Stainless Steel Reactors
Matching TCU, Chillers & Pumps
Volumes 1 / 2 / 3 / 5 / 10 / 20 / 30 / 50 / 100 / 150 / 200 L · glass & stainless steel · -80°C to +200°C process windows with matching TCU
Reactor Lines In Detail
Double-Layer Jacketed Glass Reactor (1L–100L)
The workhorse jacketed glass reactor for synthesis, crystallization and distillation: borosilicate vessel with circulating jacket connected to a heating/cooling TCU. Volumes from 1L bench units to 100L pilot systems, with explosion-proof motor options and full glassware accessories.
| Volumes | 1, 2, 3, 5, 10, 20, 30, 50, 100 L |
| Vessel | High borosilicate glass GG-17 |
| Jacket | Circulating heating/cooling via TCU or chiller |
| Options | Explosion-proof motor, vacuum, custom ports |
| Typical applications | Synthesis, crystallization, distillation |
Single & Triple Layer Glass Reactors
Single layer glass reactors with heating mantles for straightforward reflux and mixing work, and triple layer (vacuum-jacketed) reactors that hold low temperatures stable for cryogenic chemistry — the insulation layer cuts cooling losses where a standard jacket struggles.
| Single layer | 1L–100L, electric heating mantle options |
| Triple layer | Vacuum-insulated jacket for low-temp work |
| Vessel | High borosilicate glass |
| Options | Custom stirrers, condensers, feeding ports |
| Typical applications | Reflux, mixing, low-temperature reactions |
BSF Double-Layer Stainless Steel Reactor (2L–200L)
Stainless steel reactors for processes that outgrow glass: higher pressures, mechanical robustness and pilot-to-production volumes from 2L to 200L. Double-layer jacketed construction connects to the same TCU and chiller lineup, so scale-up keeps your temperature control philosophy intact.
| Volumes | 2, 3, 5, 10, 20, 30, 50, 100, 150, 200 L |
| Material | Stainless steel, double-layer jacketed |
| Scale-up | Same TCU/chiller interfaces as glass line |
| Options | Pressure rating, ports and drive per spec |
| Typical applications | Pilot plants, scale-up, robust processes |

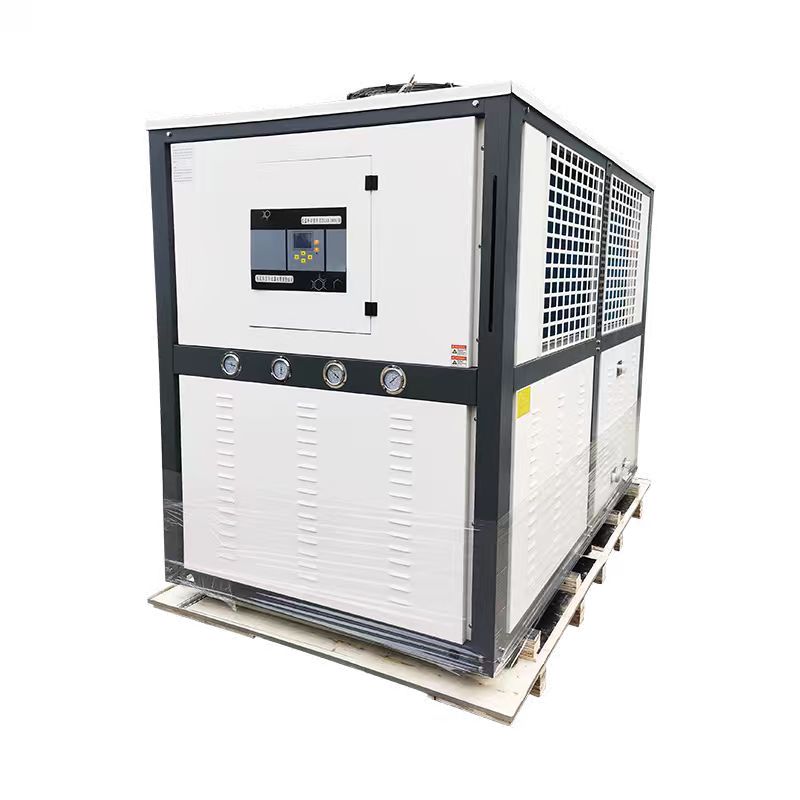

Temperature Control: TCU, Chillers & Thermostatic Baths
A reactor is only as good as its temperature control. We match TCU dynamic temperature control systems, sealed recirculating chillers (down to -80°C class) and high-temperature thermostatic baths to your reactor volume and process window — one supplier, one warranty, one RFQ.
| TCU systems | Dynamic heating/cooling control |
| Chillers | Sealed recirculating, low-temperature class |
| Baths | High-temperature thermostatic series |
| Sizing | Matched to reactor volume & process window |
| Typical applications | Reactor temperature control, condensers |
Every reactor is quoted as a working system — vessel, drive, temperature control and vacuum matched together, with export packaging and documentation handled for your destination.
One Supplier for the Complete Reactor System
UnionClay supplies the whole reactor working system — vessel, drive, temperature control, vacuum and glassware — instead of leaving you to match parts from three vendors. Configurations are engineered against your process window, export packaging and documentation are handled for your destination, and the same TCU/chiller lineup carries you from 1L glass to 200L stainless scale-up.
- Glass and stainless steel reactor lines, 1L to 200L
- TCU, chillers and thermostatic baths matched in-house
- Custom ports, stirrers and explosion-proof options per spec
- Export packaging and documentation for worldwide delivery
Specification sheets and configuration documentation supplied with every quote.
| What buyers compare | UnionClay (system supplier) | Buying parts separately |
|---|---|---|
| Reactor + TCU + vacuum match | Engineered together against your process | You integrate three vendors yourself |
| Scale-up path | Same control interfaces 1L glass → 200L steel | Re-engineering at every volume step |
| Custom configuration | Ports, stirrers, explosion-proof per spec | Stock items only |
| Warranty & support | One supplier, one responsibility | Vendors pointing at each other |
| Export handling | Packaging & documentation included | Freight forwarding on you |
From Process Window to Working System in 3 Steps
1. Send Your Process Requirements
Reactor type, volume, temperature range, vacuum and stirring needs — or just describe the reaction.
2. System Engineering & Quote
Our engineers spec the reactor plus matching TCU, chiller and vacuum package, with pricing within 24 hours.
3. Build, Test & Export Delivery
Systems are configured, tested and export-packed with documentation for your destination.
Built for Your Lab & Plant
Pharma & Chemistry Labs
Pilot Plants & Scale-Up
Universities & Research
Pharmaceutical R&D Fine Chemicals Battery & New Energy Materials Cosmetics Food Processing Universities & Research CRO / CDMO Pilot Plants
Why Labs Choose UnionClay
1L–200L
Full volume range, glass & stainless steel
2 Lines
Glass reactors + BSF stainless series
Full Match
TCU, chillers, baths & vacuum from one supplier
24h
Engineering quote response target
Frequently Asked Questions
Yes. Share your reaction type, temperature range, vacuum and stirring requirements — our engineers will spec the vessel, drive and temperature control as one system.
Yes. TCU dynamic temperature control systems, recirculating chillers and thermostatic baths are matched to your reactor volume — one RFQ covers the whole working system.
Yes. Vessel ports, stirrer types, explosion-proof motors, pressure ratings and frame dimensions are configured per specification.
Standard configurations ship quickly; custom builds are quoted with a clear production timeline. Export packaging and documentation are handled for your destination.
Standard B2B terms: T/T and other common arrangements, with EXW / FOB / CIF trade terms quoted per destination.
Yes. Single-unit orders are welcome — many customers validate a bench-scale system before scaling to pilot volumes.
Comparing Reactor Suppliers?
Send your process window once — get a complete system quote with matching temperature control.
